NEXON HeavyShock PRO 5 J complete solar electric fence kit with battery and 400 m wire

NEXON HeavyShock PRO 5 J complete solar electric fence kit with battery and 400 m wire

The NEXON HeavyShock PRO 5 J complete solar kit is designed for building an independently powered electric fence system with compatible components selected for straightforward installation. The system operates from 12 V DC and includes a solar panel, battery, wire, grounding equipment and the main accessories required to build the fence.

The system can be used for containing sheep, goats, pigs, horses, cattle and dogs, as well as in areas exposed to wild animals such as bears, wolves, wild boar, foxes and deer.

The NEXON HeavyShock Professional energizer delivers a maximum pulse energy of 5 J and a maximum output voltage of 13,000 V. The package includes 400 m of NEXON Professional electric fence wire with 4 strands and a breaking strength of 300 kg.

The 30 W solar panel and included 12 V / 18 Ah battery allow the system to operate without a permanent mains connection. Under suitable sunlight and operating conditions, the system is suitable for autonomous operation during the grazing season from April to October.

Main features

• NEXON HeavyShock Professional 5 J electric fence energizer

• Maximum output voltage: 13,000 V

• 12 V DC operation

• 30 W solar panel with support

• 12 V / 18 Ah battery

• 400 m NEXON Professional electric fence wire

• 4 strands, 300 kg breaking strength

• 100 NEXON MEDIUM ring insulators

• Two 5 m spring gate sets

• Two 0.5 m galvanised grounding rods

• Accessories for corners, wire tensioning and connections

Technical specifications

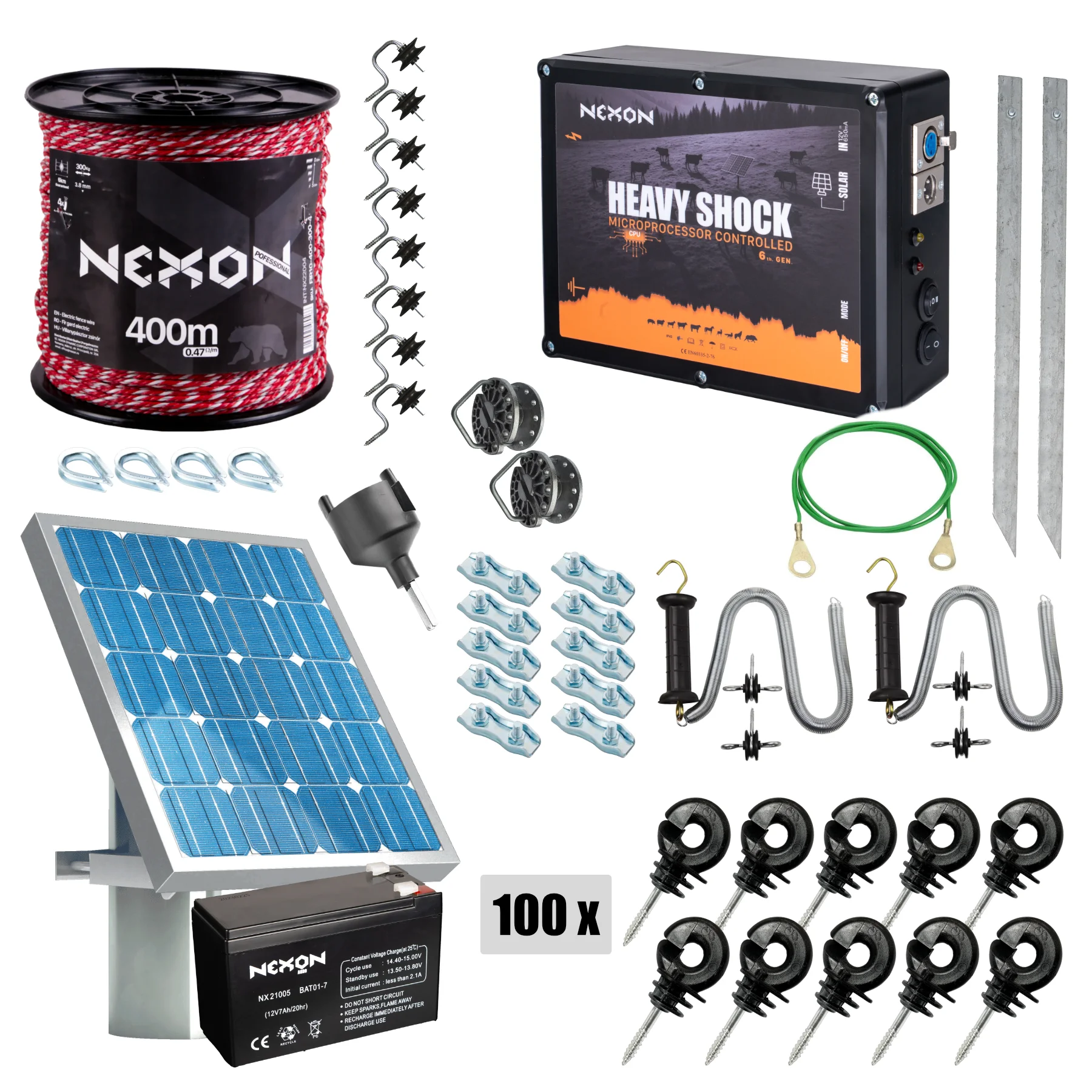

Package contents

• 1 × NEXON HeavyShock Professional 5 J electric fence energizer

• 1 × 30 W solar panel with support

• 1 × 12 V / 18 Ah battery

• 1 × NEXON Professional electric fence wire, 400 m, 4 strands, 300 kg

• 100 × NEXON MEDIUM ring insulators

• 8 × NEXON corner insulators

• 2 × 5 m NEXON spring gates with insulators

• 2 × NEXON 0.5 m galvanised grounding rods

• 1 × NEXON insulator installation tool

• 10 × NEXON 3 mm wire connectors

• 10 × NEXON 4 mm ring wire connectors

• 2 × NEXON electric fence tensioning rollers

• 1 × grounding cable for the energizer-to-grounding connection

• 1 × connection cable set

• 1 × warning sign

• 1 × user manual

Important

The power cable is not included in the package.

Read the user manual carefully before commissioning and follow all installation, grounding and connection instructions.
