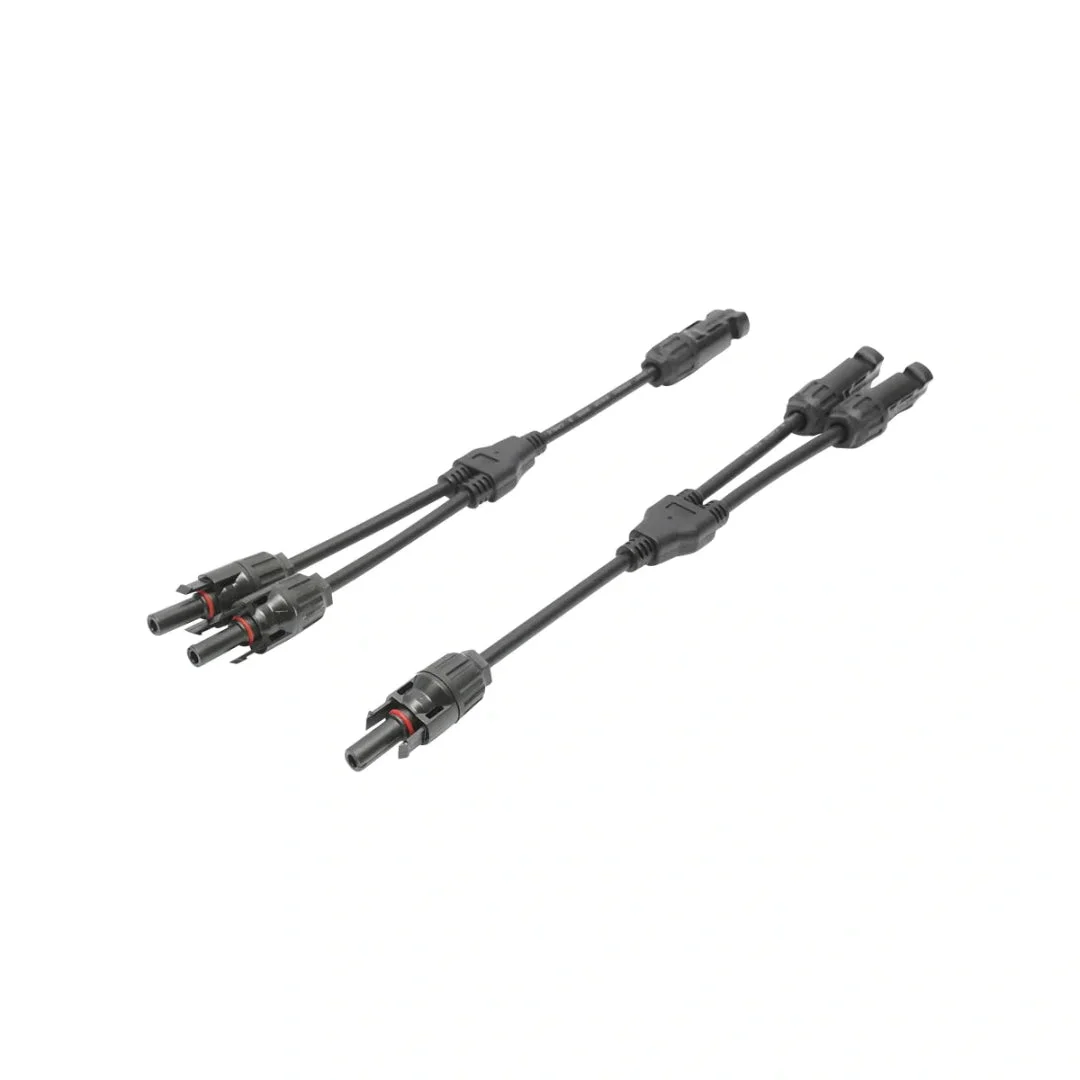

NEXON Y 2-in-1 MC4x3 connector set for solar panels, 4 mm
45.14 EUR
Y 2in1 MC4x3 connector set for solar panels. Enables quick and secure parallel connection between two solar panels. Rated 20–40A, IP67 protection.
NEXON Y 2-in-1 MC4x3 connector set for solar panels, 4 mm
The NEXON Y 2-in-1 MC4x3 photovoltaic connector set is designed for connecting two solar panels into a single electrical circuit. The connectors feature a 4 mm design and a double-locking system for a secure connection.
The contacts are made from tin-plated copper, while the insulating housing is made from PPO. Designed for photovoltaic installations, the connectors feature IP67 protection and an operating temperature range from -40 °C to +105 °C.
Main features
Y 2-in-1 MC4x3 photovoltaic connector
For connecting two solar panels into a single circuit
4 mm version
Double-locking system
Tin-plated copper contacts
PPO insulating material
IP67 protection rating
Rated voltage: 1000 V AC/DC
Technical specifications
Brand | NEXON |
Product type | Y 2-in-1 MC4x3 photovoltaic connector set |
Rated voltage | 1000 V AC/DC |
Rated current | 20–40 A |
Conductor size | 4 mm |
Operating temperature | -40 °C to +105 °C |
Protection rating | IP67 |
Contact resistance | 0.5 mΩ |
Contact material | Tin-plated copper |
Insulating material | PPO |
Package contents
3 × female connectors
3 × male connectors
Recommended use
The set is intended for photovoltaic installations where two solar panels need to be connected into a single electrical circuit. Before installation, verify that the connectors and electrical ratings are compatible with the photovoltaic system being used.
