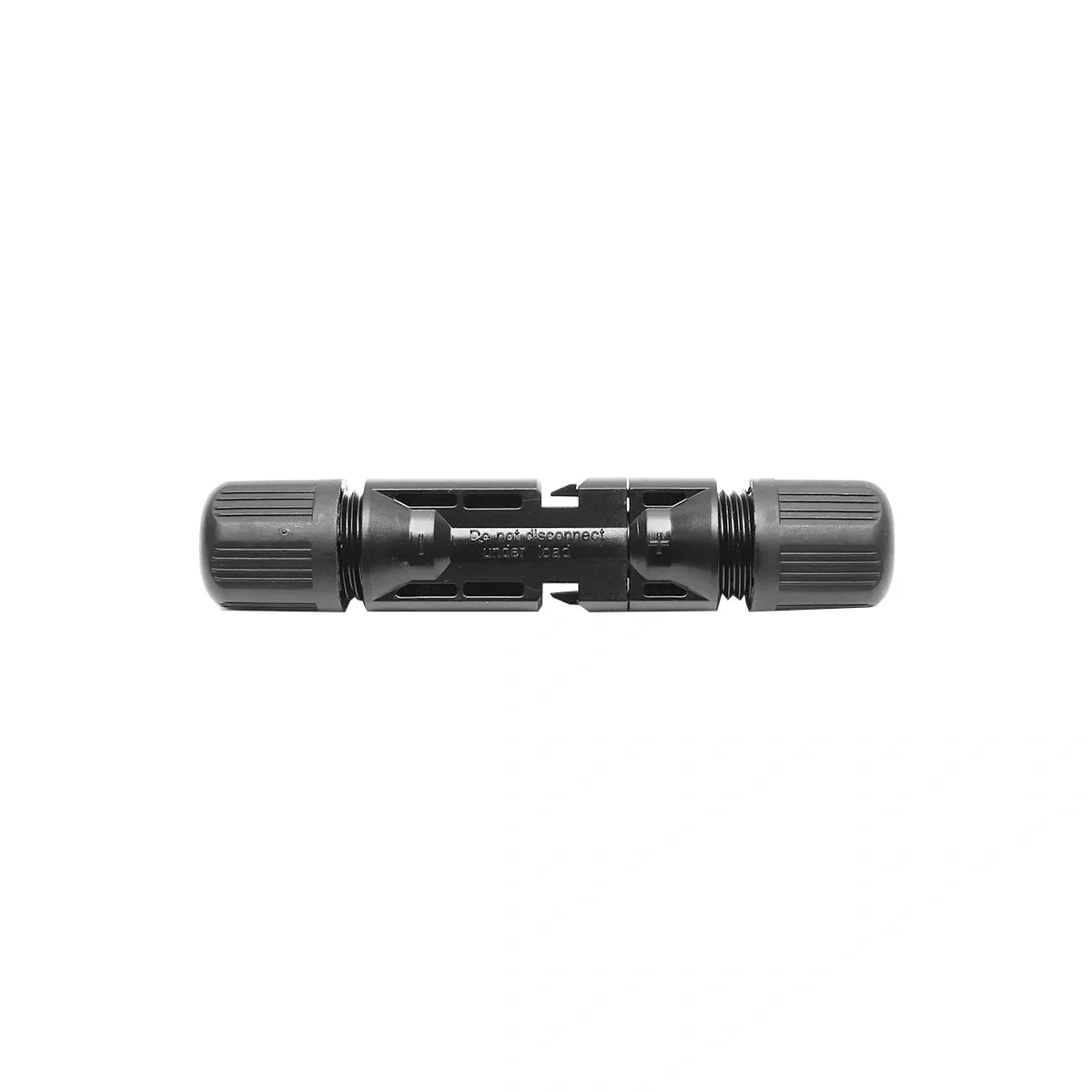

NEXON MC4 solar panel connector set, 4 mm, IP67
7.06 EUR
MC4 connector set for solar panels, compatible with 4–6 mm cables. Secure double-lock design, IP67 protection, and 30A rated current.
NEXON MC4 solar panel connector set, 4 mm, IP67
The NEXON MC4 photovoltaic connector set is designed for making electrical connections in solar panel systems. The connectors feature a double-locking system and PPO insulation material.
The contacts are made from tin-plated copper, and the connectors are suitable for cables used with crystalline or thin-film solar panels. The set contains one female and one male MC4 connector.
The connectors have a rated voltage of 1000 V AC/DC, a rated current of 30 A and an IP67 protection rating.
Main features
NEXON MC4 photovoltaic connectors
4 mm connector system
Double-locking system
PPO insulation material
Tin-plated copper contacts
Rated voltage: 1000 V AC/DC
Rated current: 30 A
Protection rating: IP67
Operating temperature: -40 °C to +105 °C
Technical specifications
Brand | NEXON |
Product type | MC4 photovoltaic connector set |
Connector system size | 4 mm |
Insulation material | PPO |
Contact material | Tin-plated copper |
Rated voltage | 1000 V AC/DC |
Rated current | 30 A |
Conductor thickness | 4–6 mm |
Contact resistance | 0.5 mΩ |
Operating temperature | -40 °C to +105 °C |
Protection rating | IP67 |

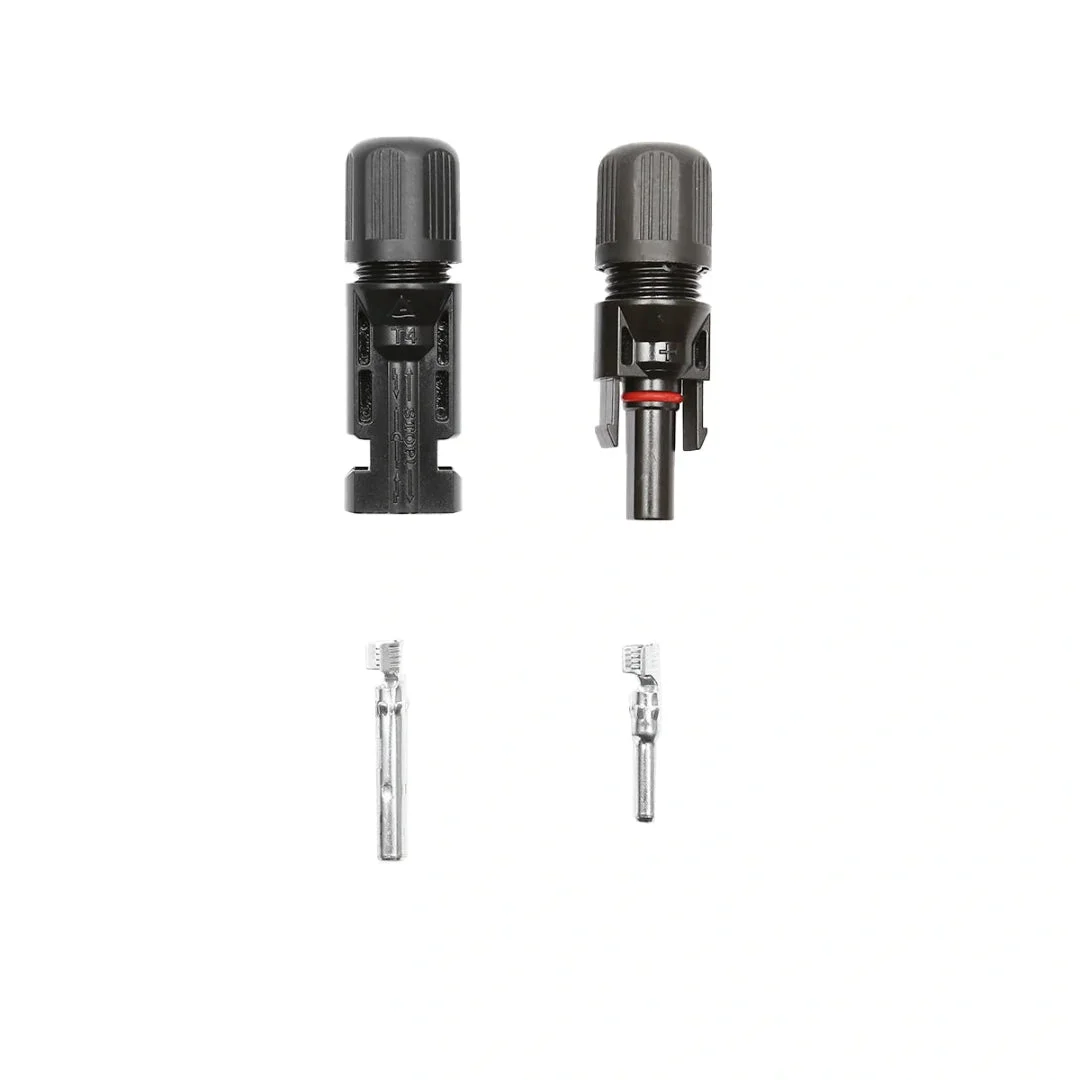

Package contents
1 × female MC4 connector
1 × male MC4 connector
