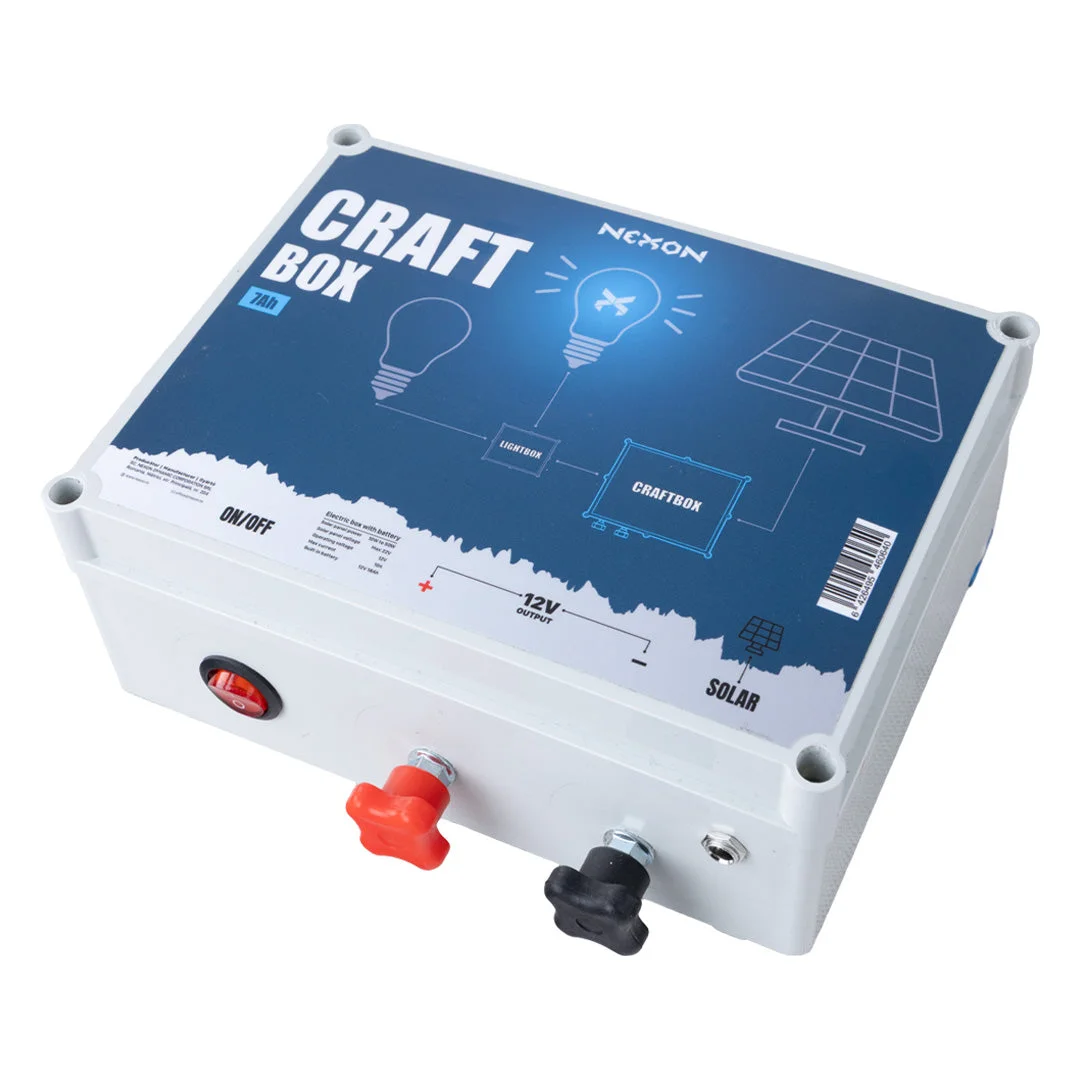

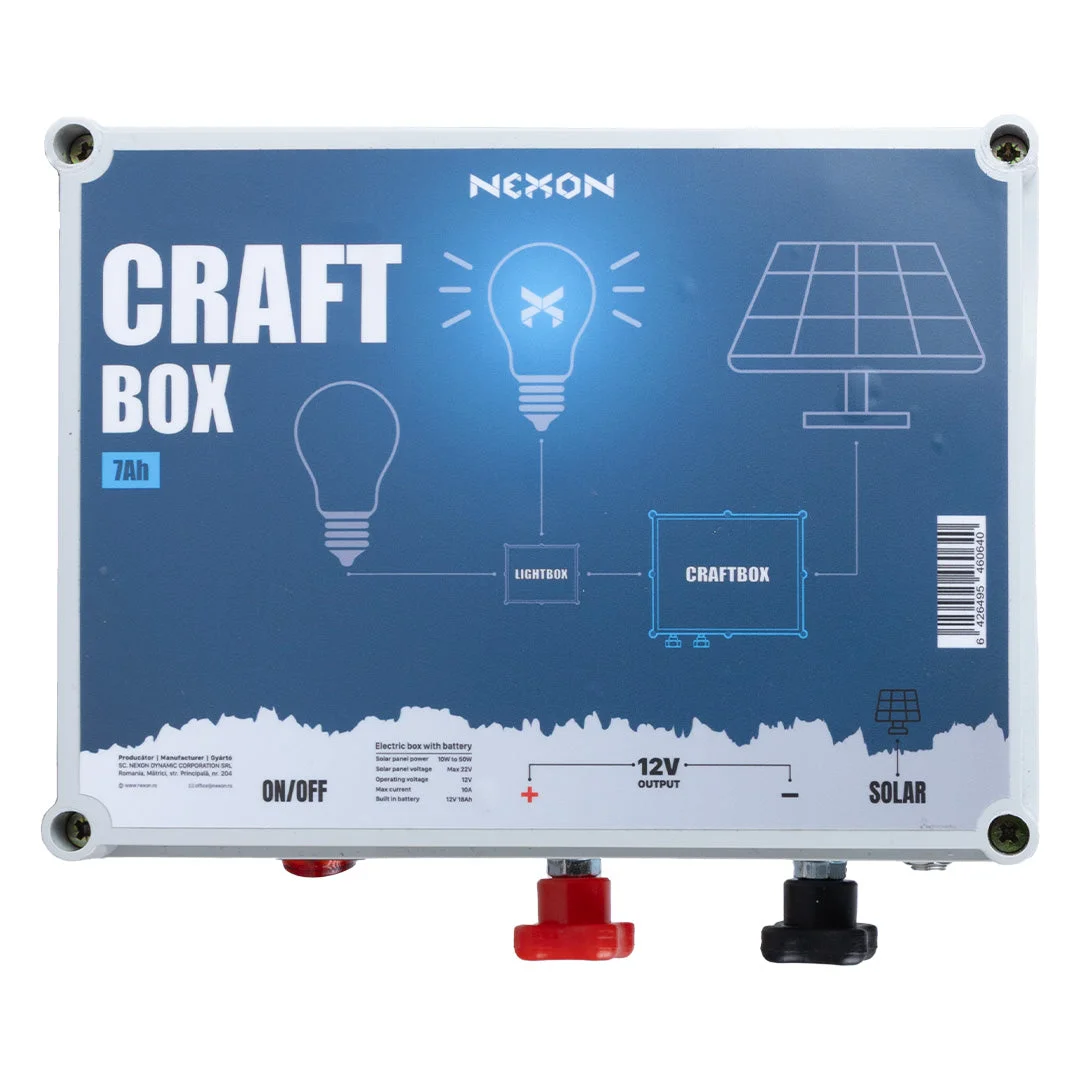

The NEXON LIGHT CRAFTBOX 7 Ah is a 12 V power module designed to supply compatible equipment in locations where an independent power source is required.

The module integrates a 12 V, 7 Ah gel battery inside an IP65 enclosure and includes a 10 A regulator. It can be used to power lighting systems, electric fence energizers and other compatible 12 V devices such as portable coolers, modulators or chargers.

Charging is carried out using a compatible solar panel, while the system connection is made through a Jack connector.

Main features

• 12 V power source

• Integrated 7 Ah gel battery

• 10 A regulator included

• Maximum current: 5 A

• Maximum input voltage: 22 V

• Universal 12 V output

• Jack connection

• Charging via compatible solar panel

• IP65 enclosure

Compatible modules and accessories

• LIGHTBOX 2

• LIGHTBOX 4

• Compatible 10 W solar panel

• Compatible 20 W solar panel

Technical specifications

Package contents

• 1 × CRAFTBOX enclosure with IP65 protection

• 1 × 12 V, 7 Ah gel battery

• 1 × 10 A regulator

Recommended use

The CRAFTBOX 7 Ah can be used as a power source for LIGHTBOX modules and other compatible 12 V equipment. Operating time depends on the total power consumption of the connected devices.

When connecting the solar panel and loads, the specified maximum voltage and current limits of the system must be observed.
