NEXON MPPT solar charge controller, 40 A, 12/24 V, with 2 USB ports
515.92 EUR
High-efficiency MPPT 40A solar charge controller with dual USB ports. Compatible with sealed, gel, and LiFePO4 batteries. Automatic 12V/24V detection, 100V input, IP30 protection.
NEXON MPPT solar charge controller, 40 A, 12/24 V, with 2 USB ports
The NEXON 40 A MPPT solar charge controller is designed for 12 V and 24 V photovoltaic systems and automatically adapts to the battery voltage. Its MPPT technology provides 4 charging settings for managing the charging process.
The controller is compatible with sealed, Gel and LiFePO4 batteries and features reverse-polarity protection and battery overvoltage protection. The specified solar panel voltage is 100 V.

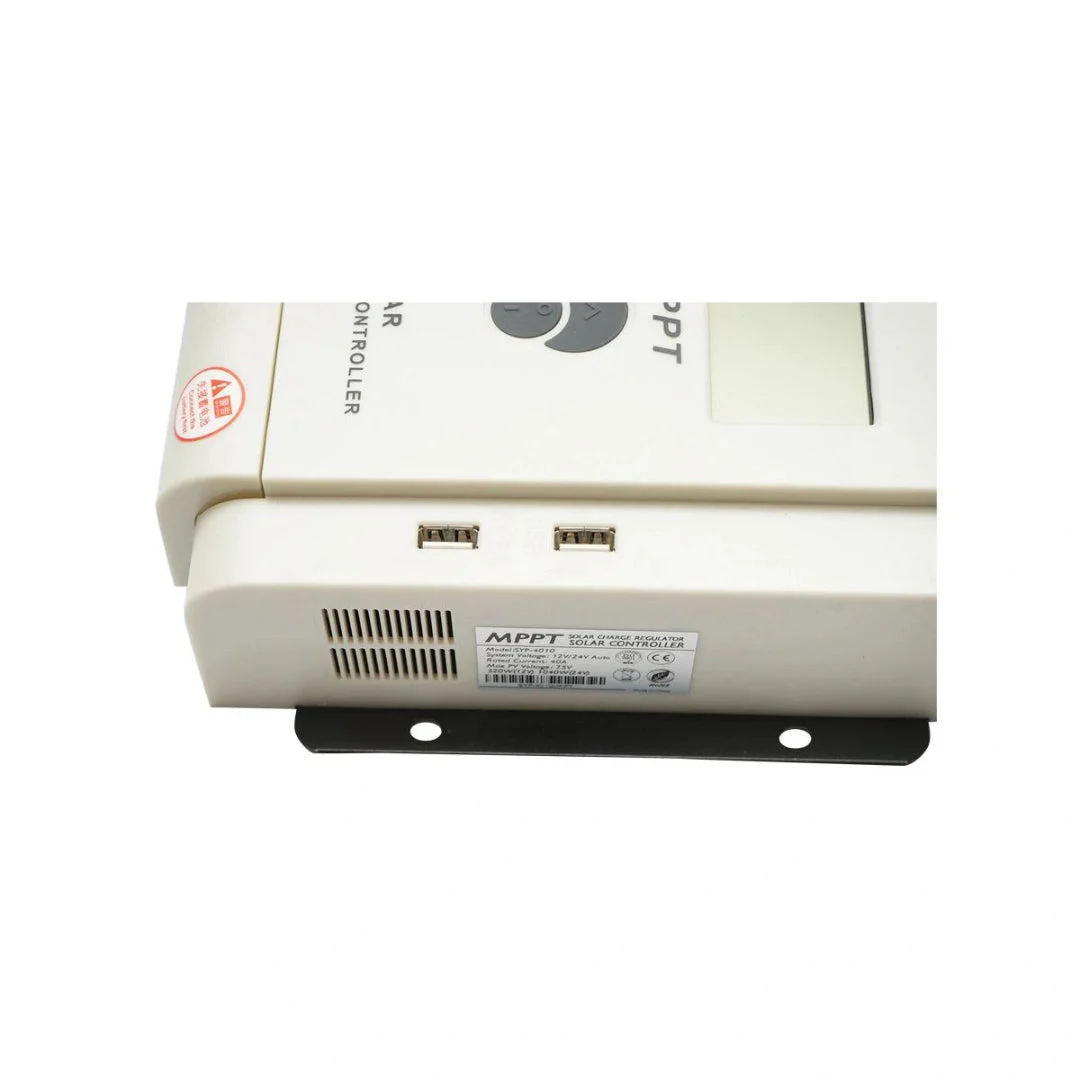

The two USB ports provide a 5 V / 2 A max. output. The controller has an IP30 protection rating and is not water resistant.
Main features
MPPT technology
4 charging settings
For 12 V and 24 V systems
Automatic battery voltage adaptation
Maximum charging current: 40 A
Maximum discharge current: 40 A
Solar panel voltage: 100 V
Compatible with sealed, Gel and LiFePO4 batteries
Reverse-polarity protection
Battery overvoltage protection
2 USB ports
Protection rating: IP30
Technical specifications
Brand | NEXON |
Product type | MPPT solar charge controller |
Battery voltage | 12/24 V, automatic adaptation |
Maximum charging current | 40 A |
Maximum discharge current | 40 A |
Standby current | < 9.2 mA (12 V); < 11.7 mA (24 V) |
Solar panel voltage | 100 V |
Compatible battery types | Sealed, Gel, LiFePO4 |
Charging settings | 4 |
USB output | 5 V / 2 A max. |
USB ports | 2 |
Protection rating | IP30 |
Operating temperature | -20 °C to +55 °C |
Dimensions | 216 × 170 × 69 mm |
Recommended use
The controller is intended for compatible 12 V or 24 V photovoltaic systems. Before installation, check the system voltage and current, solar panel voltage and compatibility of the battery type with the controller settings.
Important: the IP30 protection rating does not mean the product is water resistant. The controller must be protected from contact with water.
Important information
We make every effort to ensure the accuracy of the product information provided on this page. However, minor discrepancies may occasionally occur. Product images are for illustration purposes only and may show accessories that are not included in the standard package. The manufacturer may change the product specifications without prior notice. We accept no responsibility for data-entry or editing errors. Products are available while stocks last.
